Brazed Plate Heat Exchangers

Brazed Plate Heat Exchangers

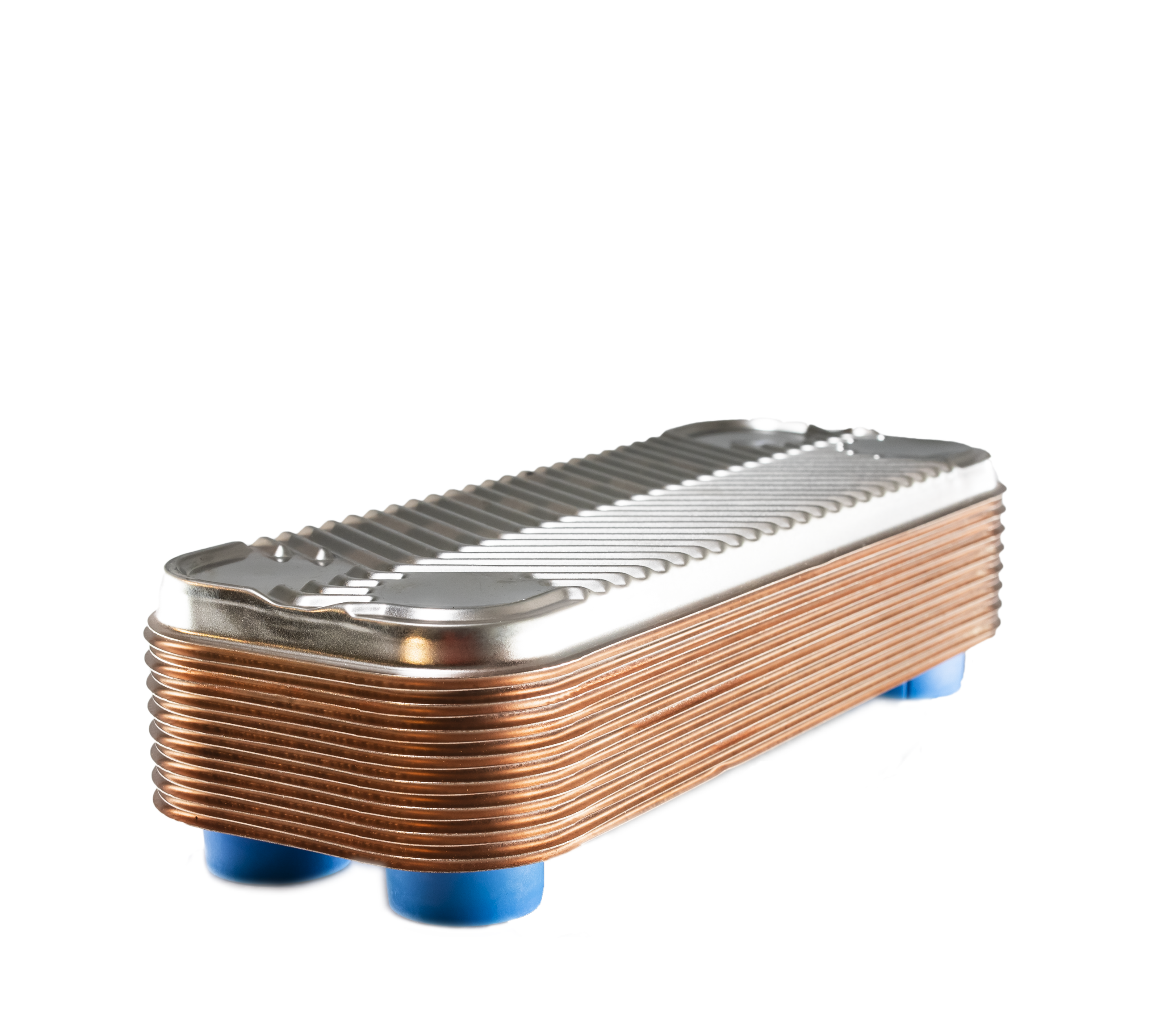

Triangle Tube brazed plate heat exchangers consist of as many as 150 pattern-embossed stainless steel plates. By brazing every second plate together and then turning them 180 degrees, they’re able to create two separate flow channels in counter current. This unique design creates a better turbulence and an outstanding heat transfer – resulting in a highly efficient heat exchange.

Warranty Info

Limited One Year Warranty Triangle Tube hereby warrants the Plate & Frame Heat Exchanger to be free from defects in material and workmanship for a period of 1 (one) year from the date of the original installation. Triangle Tube's sole and only liability and the original user’s sole remedy under this warranty shall be limited to the repair or replacement, at Triangle Tube/Phase III’s option, of the defective heat exchanger. The warranty does not cover damage from ordinary wear, erosion and/or corrosion.

Features or Benefits

  • For domestic water, snow melting, radiant floor, and refrigeration
  • 150 pattern-embossed stainless steel plates
  • Two separate flow channels with two mediums in counter current
  • Self cleaning/self descaling design
  • Non corrosive

Product Comparison

Model Threaded Connections (inch) NPT Sweated Connection (inch) A Dimension (inch) B Dimension (inch) C Dimension (inch) D Dimension (inch) E Dimension (inch) Empty Weight lbs Plates
TTP1-14E 3/4 7/8 3.3 8.0 6.0 1.6 1.6 3.1 14
TTP1-20E 3/4 7/8 3.3 8.0 6.0 1.6 2.1 3.7 20
TTP1-30E 3/4 7/8 3.3 8.0 6.0 1.6 3.0 4.8 30
TTP3-14 1 1 1/8 4.9 12.2 10.0 2.7 1.7 6.9 14
TTP3-20 1 1 1/8 4.9 12.2 10.0 2.7 1.8 7.6 16
TTP3-40 1 1 1/8 4.9 12.2 10.0 2.7 3.6 14.0 36
TTP4-10 1 1 1/8 4.9 13.2 11.1 2.9 1.3 6.4 10
TTP4-14 1 1 1/8 4.9 13.2 11.1 2.9 1.7 7.6 14
TTP4-24 1 1 1/8 4.9 13.2 11.1 2.9 2.5 10.5 24
TTP4-30 1 1 1/8 4.9 13.2 11.1 2.9 3.1 12.2 30
TTP4-50 1 1 1/8 4.9 13.2 11.1 2.9 4.8 18.0 50
TTP4-70 1 1/4 1 3/8 4.9 13.2 11.1 2.9 6.6 23.8 70
TTP7-20 2 2 1/8 11.1 21.4 18.1 7.8 2.6 51.1 20
TTP7-24 2 2 1/8 11.1 21.4 18.1 7.8 3.0 55.5 24
TTP7-30 2 2 1/8 11.1 21.4 18.1 7.8 3.6 62.1 30
TTP7-40 2 2 1/8 11.1 21.4 18.1 7.8 4.7 73.1 40
TTP7-50 2 2 1/8 11.1 21.4 18.1 7.8 5.7 84.1 50
TTP7-60 2 2 1/8 11.1 21.4 18.1 7.8 6.7 95.1 60
TTP5-8DW 1 1 1/8 4.9 20.8 18.8 2.9 1.3 9.1
TTP5-14DW 1 1 1/8 4.9 20.8 18.8 2.9 1.8 12.7
TTP5-20DW 1 1 1/8 4.9 20.8 18.8 2.9 2.4 16.2
TTP5-30DW 1 1 1/8 4.9 20.8 18.8 2.9 3.4 22.1
TTP5-50DW 1 1/4 1 3/8 4.9 20.8 18.8 2.9 5.2 33.9
TTP5-80DW 1 1/4 1 3/8 4.9 20.8 18.8 2.9 8.0 51.6
TTP5-100DW 1 1/4 1 3/8 4.9 20.8 18.8 2.9 9.9 63.4
