Heat Exchangers

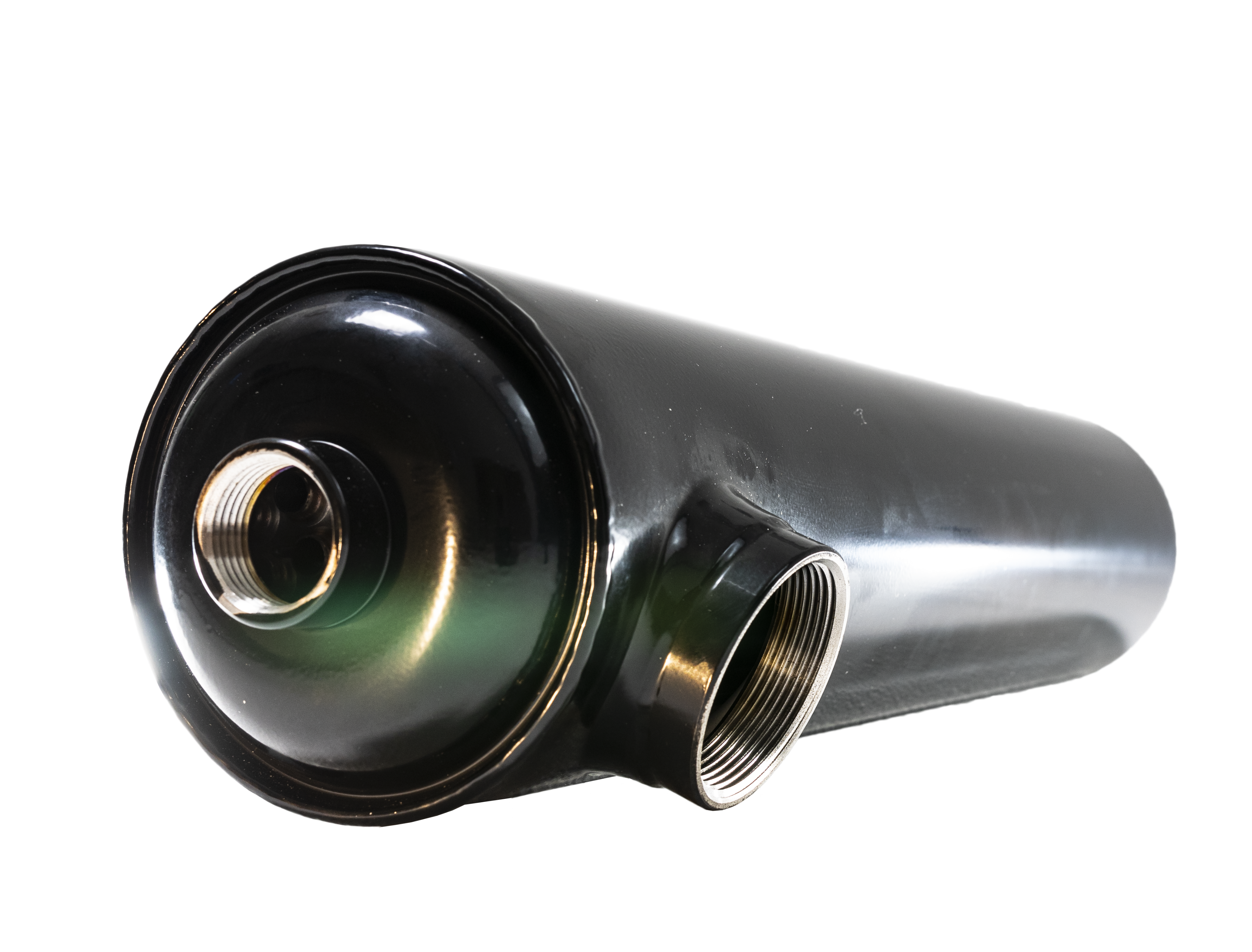

Maxi Flo Heat Exchanger

Maxi Flo

Maxi Flo Heat Exchanger Icon
Heat exchanger for swimming pools, hot tubs & spas. Sizes 80-135-200-260-400 available in stainless steel. Sizes 135-260-350 available in titanium.
  • Available in 5 sizes from 95,000 to 400,000 BTU
  • Constructed of high quality corrosion resistant stainless steel (AISI 316)
  • Built-in flow restrictor to assure maximum heat exchange
  • Designed to minimize pressure loss in the heating system
  • Significant energy savings
Brazed Plate Heat Exchangers

Brazed Plate Heat Exchangers

Brazed Plate Heat Exchangers Icon
Compact brazed plate heat exchangers
  • For domestic water, snow melting, radiant floor, and refrigeration
  • 150 pattern-embossed stainless steel plates
  • Two separate flow channels with two mediums in counter current
  • Self cleaning/self descaling design
  • Non corrosive

Product Comparison

Model Thermal Output (mhb) Hot Water Flow (gpm) Hot Water Flow Pressure Drop (ft) Cold Water Flow (gpm) Cold Water Flow Pressure Drop (ft)
MF-80 95 7 6 77 6
MF-135 135 7 2 52 3
MF-135T 135 11 9 92 5
MF-200 200 8 2 65 5
MF-260 260 9 2 77 6
MF-260T 260 13 24 92 6
MF-350T 340 11 7.5 88 3
MF-400 400 13 3 93 8
